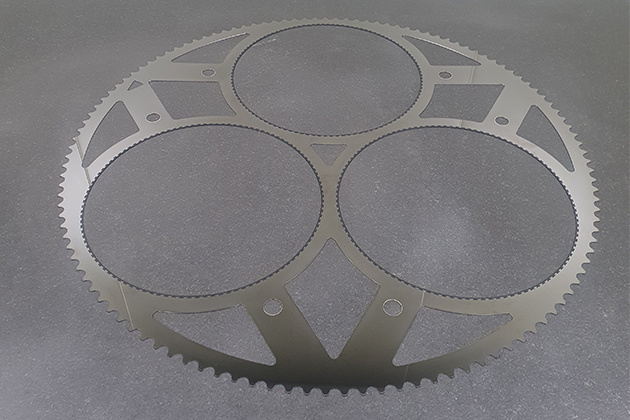

Products available => Inserted Lapping Carriers
- For the wafer sizes 450mm, 300mm, 200mm, 150mm & 125mm.
- Various carrier sizes up to 32B
- Various thickness of 0.340mm~1.270mm
- Injection molded High Resistance Insert
- Steel strips: SK85, C75S, C100S

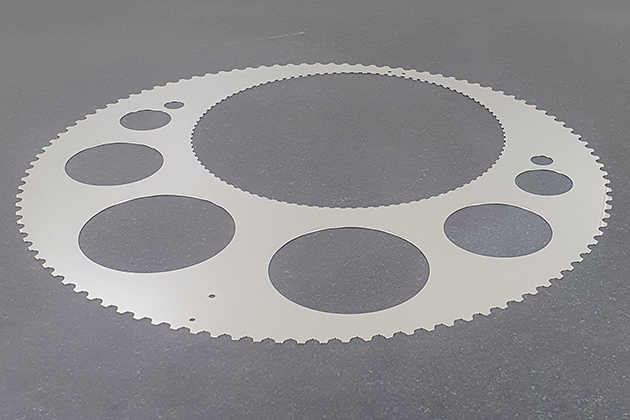

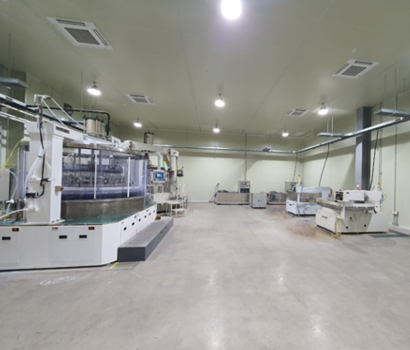

Lapping & Polishing Carriers
Standard Specification
| Wafer size | Carrier size | Number of wafer hole | Thickness (mm) | Remark |
|---|---|---|---|---|
| 450mm (18") | 32B | 1 hole | 1.000 | Metal, Prototype |
| 300mm (12") | 32B | 4 holes | 0.750 - 0.800 | Insert |
| 28B | 3 holes | 0.750 - 0.800 | ||
| 20B | 1 hole | 0.660 - 0.800 | ||
| 0.430 - 1.270 | Metal | |||
| 200mm (8") | AC 1400 | 4 holes | 0.660 - 0.780 | Insert |
| AC 1500 | 5 holes | 0.660 - 0.780 | ||
| 20B | 3 holes | 0.660 - 0.7800 | ||
| 22B | 4 holes | 0.660 - 0.780 | ||
| 24B | 5 holes | 0.660 - 0.780 | ||
| 28B | 6-8 holes | 0.720 - 0.800 | ||
| 32B | 6-8 holes | 0.720 - 0.800 | ||
| AC 1400 | 4 holes | 0.430 - 1.270 | Metal | |
| AC1500 | 5 holes | 0.430 - 0.780 | ||
| 20B | 3 holes | 0.430 - 1.270 | ||
| 22B | 4 holes | 0.430 - 1.270 | ||
| 24B | 5 holes | 0.460 - 0.800 | ||
| 28B | 6-8 holes | 0.720 - 0.800 | ||
| 32B | 6-8 holes | 0.720 - 0.800 | ||
| 150mm (6") | 14B | 3 holes | 0.340 - 0.720 | Insert |
| 16B | 4 holes | 0.340 - 0.720 | ||
| AC1200 | 4-5holes | 0.340 - 0.720 | ||
| AC1400 | 8holes | 0.430 - 0.720 | ||
| 20B | 7holes | 0.430 - 0.720 | ||
| 22B | 7-8holes | 0.430 - 0.720 | ||
| 24B | 9holes | 0.460 - 0.720 | ||
| 30B | 10holes | 0.720 , 1.000 | ||
| 14B | 3holes | 0.340 - 1.270 | Metal | |
| 16B | 4holes | 0.340 - 1.270 | ||
| AC1200 | 4-5 holes | 0.340 - 1.270 | ||
| AC1400 | 8holes | 0.430 - 1.270 | ||
| 20B | 7holes | 0.430 - 1.270 | ||
| 22B | 7-8holes | 0.430 - 1.270 | ||
| 24B | 9holes | |||
| 30B | 10holes | 0.720 - 0.800 | ||
| 125mm (5") | 16B | 7holes | 0.430 - 0.560 | Insert |
| 20B | 9holes | 0.430 - 0.560 | ||
| 22B | 10holes | 0.430 - 0.560 | ||
| 16B | 7holes | 0.340 - 1.270 | Metal | |
| 20B | 9holes | |||
| 22B | 10holes | 0.430 - 1.270 | ||
| 100mm (4") | 15B | 8-9holes | 0.340 - 1.270 | Metal |
| 16B | 8-9holes | 0.340 - 1.270 | ||
| 20B | 15holes | 0.340 - 1.270 |
=> Inserted Polishing Carrier
- Application : 200mm and 300mm Wafer Polishing
- Polished, DLC Coated, Titanium as per Customer’s requirement
- Injection molded High Resistance Insert
- Various grades of insert materials
- Substrate Material : SUS, Titanium
- Thickness : 0.7mm ~ 0.8mm
- Thickness Tolerance : ± 2um
Further details as per customer’s requirements
=> DCL Coated Polishing Carrier
- Application : 200mm and 300mm Wafer Polishing
- Injection molded High Resistance Insert
- Range of insert width (Concentricity) ≤ 0.2mm
- Substrate Material : SUS Steel (Hardness : Hv 450~550)
- Carrier Thickness : 0.750mm ~ 0.800mm ± 2 um
- DLC Coating Thickness : 2.5 um ± 1 um
- Flatness : ≤ 500 um
Further details as per customer’s requirements
